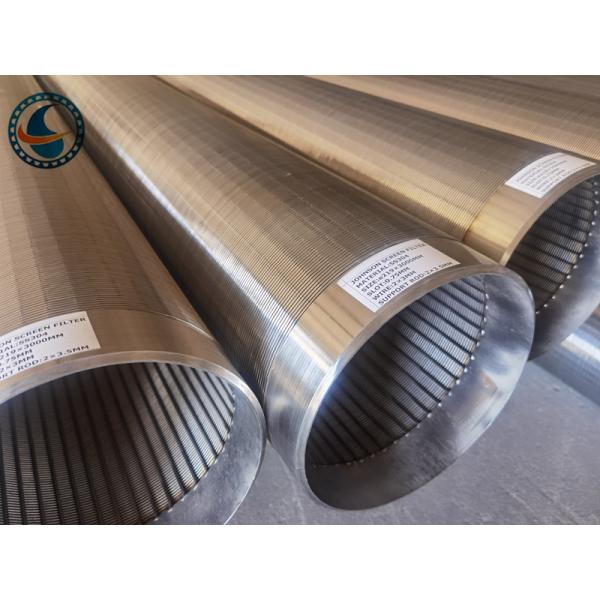

6" Stainless Steel 100 Bar Johnson Wire Screen Continuous Slot For Water

Name: 6quot Stainless Steel 100 Bar Johnson Wire Screen Continuous Slot For Water
Brand: HengYuan
Price: 1 USD

Buy cheap 6" Stainless Steel 100 Bar Johnson Wire Screen Continuous Slot For Water product

Brand Name : HengYuan

Model Number : HY022404

Certification : ISO,CIQ, FORM E,CO etc

Place of Origin : Hengshui City,Hebei Procince,China

MOQ : 2 pieces

Price : Negotiated price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1500 pcs /week

Delivery Time : 7 days

Packaging Details : wooden boxes, plastic film in 20GP container

Name : Johnson Continuous Slot Water Wire Screen

Material : Stainless steel 304

Diameter : 168mm

ID : 6"

Length : 3000mm

Slot : 1.5mm

Wire : 3*5mm Vee wire

Support rod : ø4.0mm round wire

Ends : Bevel welded rings

Technique : Point welding

Features : Non-clogging

Package : Air bubble film in container

Applicable Industries : Well drilling

Machinery Test Report : Provided

Usage : In water well for sand control

Feature : Long service life

Weight : 43KG/piece

Surface : Polished

Contact Now

6" Stainless Steel Johnson Continuous Slot Water Wire Screen

Description of Johnson Continuous Slot Water Wire Screen :

Johnson Continuous Slot Water wire screens, also called water well screen, Vee wire well screens, Wedge wire screen, are made of V or wedge shaped wires around an internal array of longitudinal support rods. It is designed to serve as the intake portion of wells constructed in unconsolidated or semi-consolidated aquifers. This design supplies a continuous slot openings, which allows water to enter the well freely in ample quantities and keeps the majority of sand and gravels out of the well at the same time.

Johnson Continuous Slot Water Wire Screen Features:

Inward opening slots (in-flow) prevents sand particles from remaining lodged in screen.
High efficient and ensures consistent pumping and long well life
Specially V-shaped wire structure with two point welding prevents plugging and clogging.
Continuous slot wedge wires provide large open area than perforated metal pipes or slot pipes used in water well applications.
Strong longitudinal support rods supply excellent pressure-resistant performance

Johnson Continuous Slot Water Wire Screen Normal Sizes:

SIZE (Inch)	O.D (mm)	SLOT (Inch)	LENGTH (M)	Collapse Strength (PSI)	Tensile Weight (ton)	Wire size (mm)	Support RODS (mm)
4-1/2	114.3	0.040	3	395	6	2.2*3.5	3.8mm/22
4-1/2	114.3	0.040	3	395	6	2.3*3.5	3.8mm/22
6-5/8	168.3	0.040	3	252	8	2.3*3.5	3.8mm/32
8-5/8	219.1	0.010	3	399	10.5	3.0*4.6	3.8mm/48
8-5/8	219.1	0.020	3	370	10.5	3.0*4.6	3.8mm/48
8-5/8	219.1	0.040	3	323	10.5	3.0*5.0	3.8mm/48
10-3/4	273.1	0.010	3	206	11	3.0*5.0	3.8mm/55
10-3/4	273.1	0.020	3	191	11	3.0*5.0	3.8mm/55
10-3/4	273.1	0.040	3	167	11	3.0*5.0	3.8mm/55
